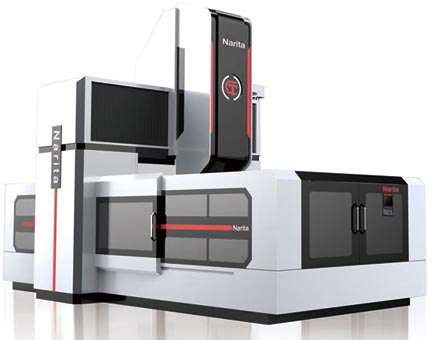

GMC fixed beam CNC gantry machining center equipped with milling, boring(drilling, expansion, hinge), tapping, countersink and other processing functions. For the different characteristic of customers, optional full closed loop optical scale detection system, tool center cooling function, ATC robot hand style, automatic workpiece measurement, tool automatic measurement, 4-axis linkage processing and other functions, customers can enjoy excellent cost-effective configuration, satisfied with the intimate products. The products specifications and configuration of the leading domestic product structure and technology is mature, product quality and stability, machine torque, fast response characteristics, suitable for automotive, mold, aerospace, packaging, hardware and other mechanical processing needs.
项 目 Project | 单位 Unit | GMC12 系列 | ||
机 型 Model | GMC1012 | GMC2012 | ||
工作台尺寸 | 最大承重 Max capacity | kg | 2000 | 3000 |
X/Y/Z 行 程 X/Y/Z travel | mm | 1000/1200/500 | 2000/1200/800 | |
龙门宽度 Gantry width | mm | 1220 | 1220 | |
工作台尺寸 Working table size | mm | 1000×800 | 2000×1000 | |
T型槽数量 T-slot number | No. | 5 | 7 | |
T型槽尺寸/间距 T-slot size/pitch | mm | 18/150 | 18/133 | |
重切削主轴 | 驱动方式（选配） | 直联/皮带 Direct/Belt | ||
主轴转速 Spindle speed | rpm | 10-12000 | 10-6000 | |
主电机功率 Motor power | kw | 11/15 | 15/18.5 | |
主轴鼻端到工作台 Distance from spindle nose to table | mm | 150-650 | 150-950 | |
主轴锥度及规格 Spindle taper | BT40/BT50 | BT40/BT50 | ||
主轴直径 Spindle diameter | mm | Φ150/Φ190 | Φ150/Φ190 | |
拉钉规格 Rivet specificefion | P40T-MAS1-G | |||
进给驱动Feed drive | X/Y/Z快移速度 Shaft moving speed of X/Y/Z | m/min | 12/12/10 | 12/12/10 |
X/Y 线轨（滚柱） X/Y Rail (roller) | mm | 45(X轴)2根 45(Y轴)2根 | 55(X轴)2根 45(Y轴)2根 | |
X/Y/Z轴丝杠直径（滚珠） X/Y/Z ball screw diameter | mm | 4300//30 | 50/40/40 | |
精度Accuracy | 定位精度 Positioning accuracy | mm | 0.015 | 0.018 |
重复精度 Repeat accuracy | mm | 0.012 | 0.015 | |
数控系统 CNC system | 发那科 FANUC | |||
机床净重 Net weight | T | 10 | 16 | |
FANUC系统 FANUC system | 手持气枪 Hold the air gun | 工作灯 Working lamp |
水箱冷却装置 Water tank cooling device | 控制电器柜 Control electrical cabine | 三色警示灯 Three-color warning light |
自动润滑装置 Automatic lubrication | 变压器 Transformer | 液晶显示器 LCD monitor |
外防护罩 Outer shield | 电器柜热交换机 Electrical cabinet heat | 工具，工具箱 Tools, toolbox |
主轴锥孔吹气装置 The spindle taper vent blower | 手摇脉冲发生器 Hand pulse generator | 操作使用手册 Operation manual |
圆盘式机械刀库 Disc-type mechanical magazine | 全闭环光学尺检测系统 Full closed loop optical scale |
自动换刀装置（机械手） Automatic tool changer (robot) | 自动刀长测量系统 Automatic tool length measurement system |
主轴中心出水系统 Spindle center effluent system | 手动/半自动直角头 Manual/semi-automatic right angle head |
圆盘式油水分离器 Disc type oil and water separator | ZF齿轮箱 ZF gearbo |
数控转台(第四轴) CNC rotary table(4th axis) | |
电气柜空调 Electrical cabinet air condition |
